Introduction
The purpose of this calculator is to solve the resistance of a copper conductor based upon physical dimensions. The resistance of a trace can be useful in many ways. The power dissipation in a trace is calculated after one has determined the trace resistance. The trace resistance can also be helpful if a circuit requires precision resistors and the pcb traces cab effect the resistance value.

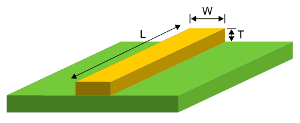

The equation for resistance of a rectangular conductor is:
R=\rho \cdot \frac{L}{T\cdot W}\cdot \left ( 1+tc\cdot \left ( temp-25 \right ) \right )
Where
\rho=resistivity
L= length
W=trace width
T=trace height
Resistivity of Copper is: 1.7E-6 ohm-cm
Temp_Co of Copper is: 3.9E-3 ohm/ohm/C
